The system with two transmitter units
REMdevice’s new remote control for safe and precise use on all makes of building cranes.
With the option of operating the machine in use when the main transmitter unit is at a distance.
Allows normal operation of the machine if the main transmitter is out of order.
Reduces breakdown costs because professional on-site servicing is not necessary.
Avoids the installation of a cable command system.

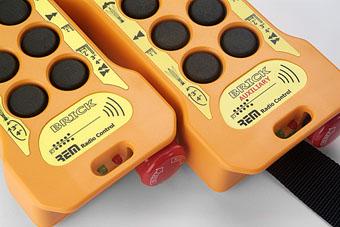

TWIN SYSTEM The system with two transmitter units. The TWIN SYSTEM includes two transmitter units (PAIL or BRICK models) and one receiver unit that is connected to the machine in use. How the system works: When the machine to be used is switched on, power is also supplied to the receiver connected to it and this is programmed to accept control from the first transmitter activated. Once the receiver unit accepts control from one of the transmitter units, it then activates the machine in use to emit one of the following: ONE acoustic signal if the principle transmitter is in control; THREE acoustic signals if the auxiliary transmitter is in control. From this moment until power to the receiver unit is cut off, the machine being used will be controlled exclusively by this transmitter. The other transmitter can NEVER take over control of the machine. The TWIN SYSTEM complies with all relevant safety regulations currently in force; The TWIN SYSTEM cannot be operated by two transmitters at the same time! In order to transfer control of the machine from one transmitter to the other the machine in use must be turned off.
Conforms to directives Radio EN 300 220-3 V1.1.1 (09 2000) EMC EN 301 489-3 V1.2.1 (07 2000) Safety EN 60204-32 (EN 954-1)
Modulation: FM Manchester coder
Signal output: 5 mW
Oscillator: Digital PLL
Antenna: ¼ λ integrated
Power supply: 3,6 Vdc
Power consumption: 45 mA
Batteries: Integrated 3x1,2V @ 1800mA
Working autonomy : ~ 35 hours (20°C)
Low battery warning: 90 minutes
Casing protection: Nylon / IP55
Radio frequency receiver: Single Chip
Antenna: ¼ λ amplified
Command relay capacity: 5A 110Vac
Stop relay capacity: 5A @ 110Vac
Power supply: 24V / 48V @ 110 Vac
Casing: ModulBox for mounting on DIN bar EN 50022
ModulBox protection: IP20
ModulBox size: 158 x 9 x 75 mm (LxWxH)
Watertight casing for external mounting: Nylon / IP55
Size: 255 x 190 x 95 mm (LxWxH)
Transmitter & receiver units - shared parameters
Frequency: 869,700 - 870,00 MHz
Channel Pitch: 25 KHz
Number of channels available: 11
Hamming code: 4qqq
Maximum number of simultaneous on/off commands: 10
Command response time: 45 ms
Stop/activity emergency response time: 45 ms
Stop/passive emergency response time : 250 ms
No radio signal/emergency response time: 250 ms
No radio signal/start relay release time: 1200 ms
Range of control: 100 m
Working and storage temperature: from -20°C to +70°C
3 yıl garanti
